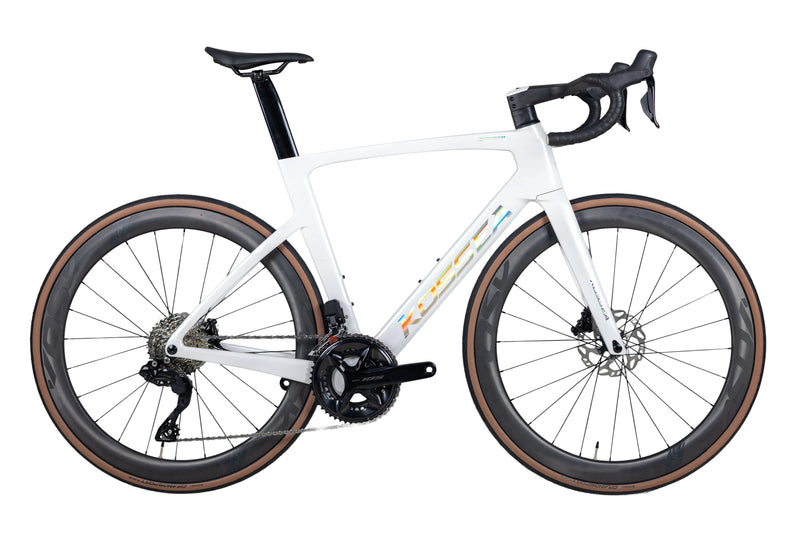

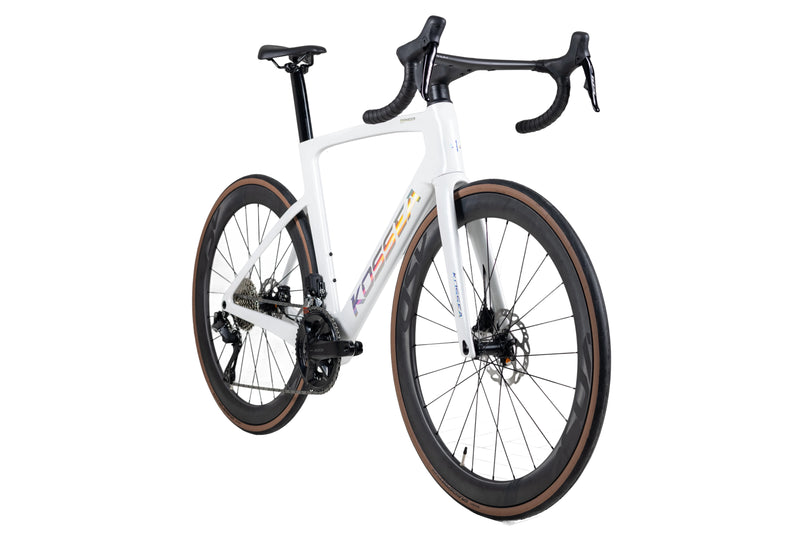

Specification

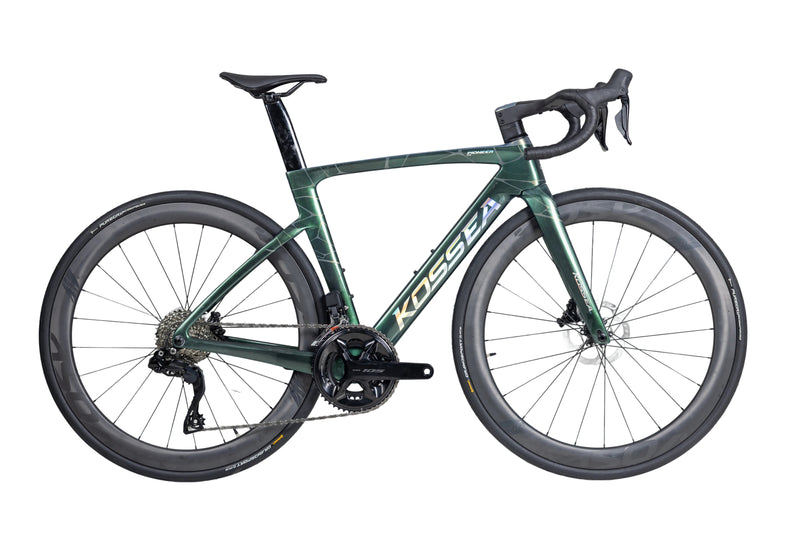

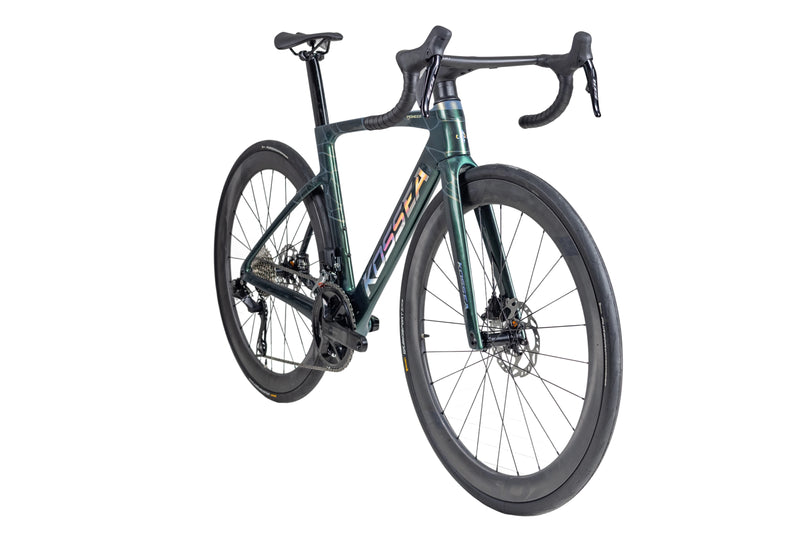

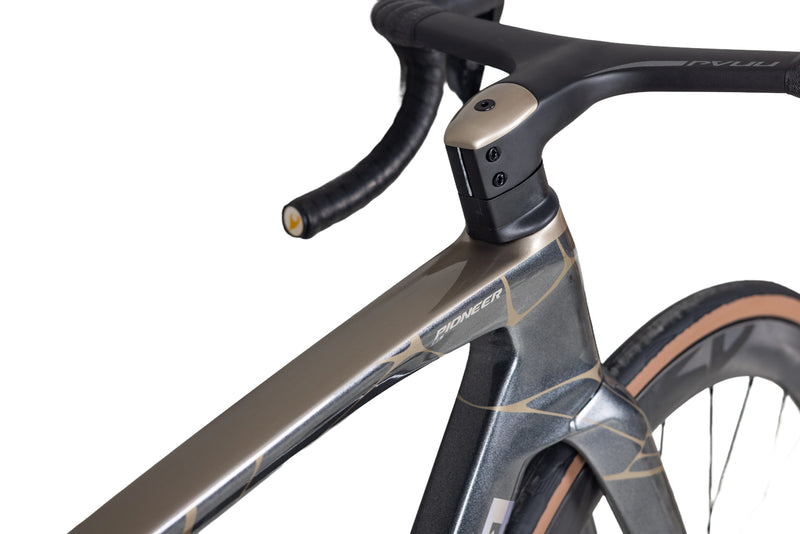

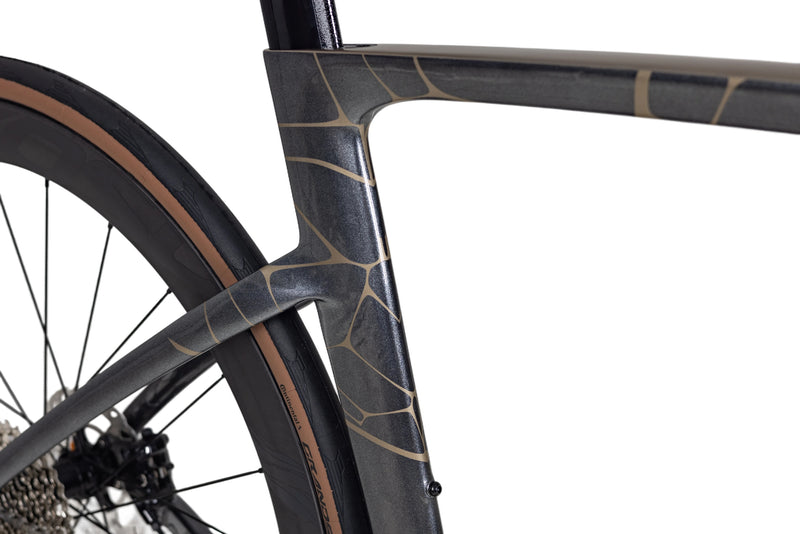

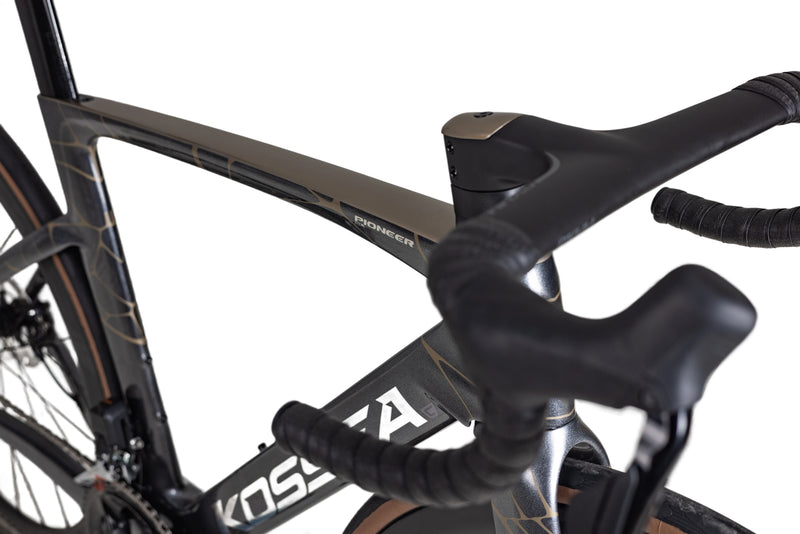

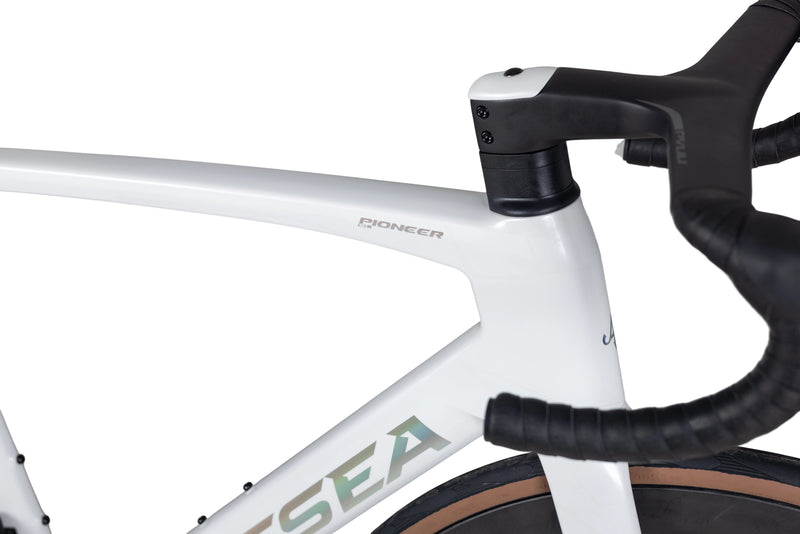

- Frame: Kossea Pioneer SL Carbon 12×142mm thru-axle, Flat Mount Disc
- Fork: Kossea Pioneer SL Carbon 12×100mm thru-axle, Flat Mount Disc
- Shifter: Shimano 105 R7150 12-speed
- Front derailleur: Shimano 105 R7150 Di2,braze-on,2×12 speed
- Rear derailleur: Shimano105 R7150 Di2 12 speed

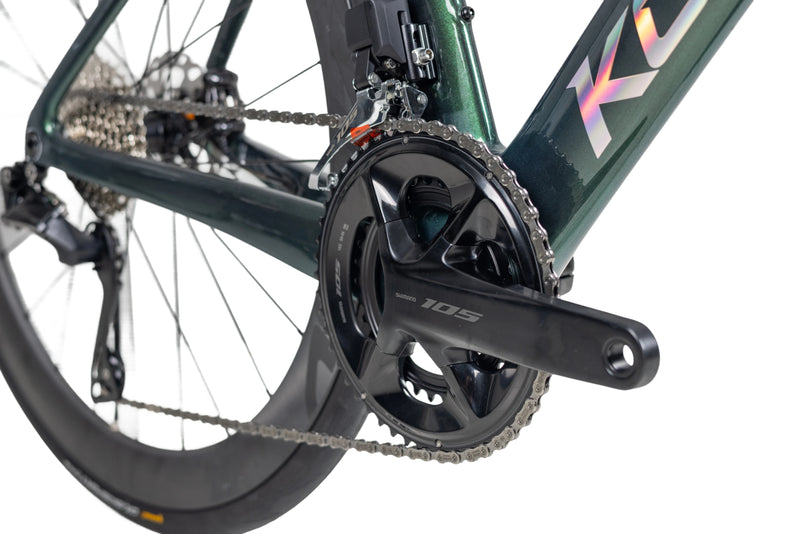

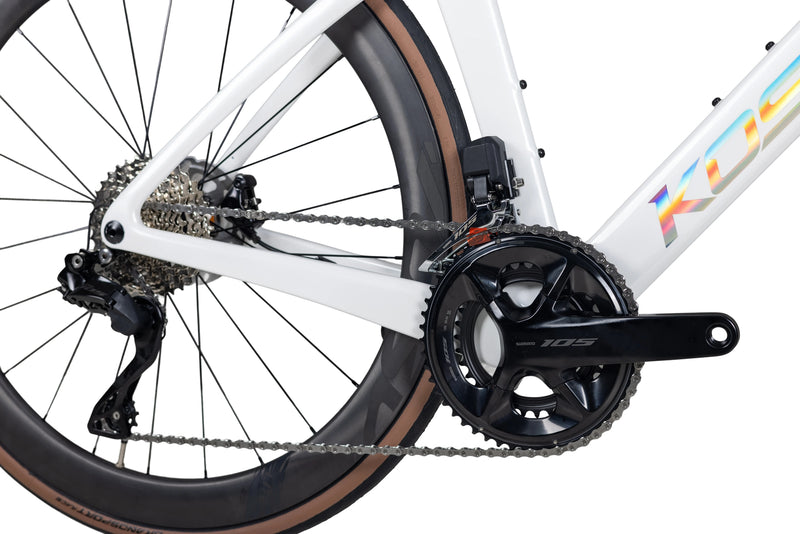

- Crank: Shimano 105 FC-R7100,50-34T
- Cassette: Shimano 105 CS-R7101,11-34T, 12-speed
- Chain: Shimano CN-M6100
- Bottom Bracket: BB86

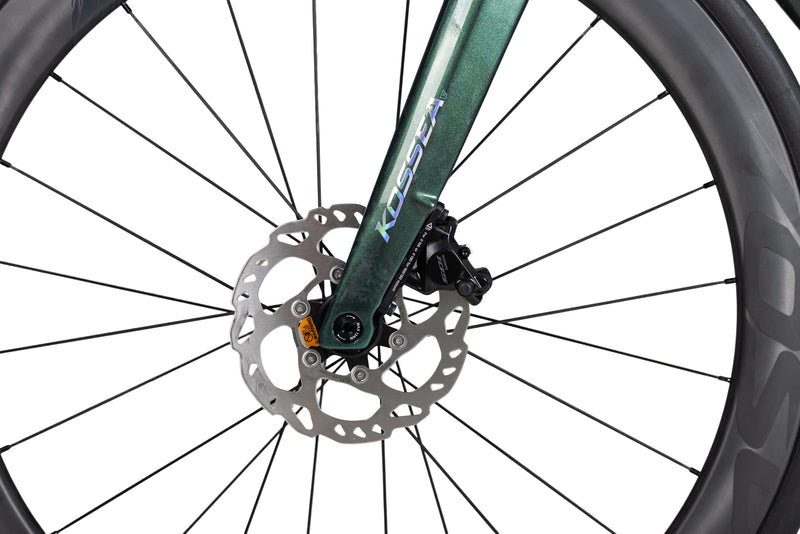

- Brake: Shimano 105 R7170 Hydraulic Disc Brake
- Brake Rotor: Shimano RT10,Center Lock,160mm
- Wheelset: SCOM Voso Lite 50mm Carbon Wheels, tubeless ready
- Tire: Continental Grand Sport 700X28C
- Saddle: Selle Royal A86 road saddle

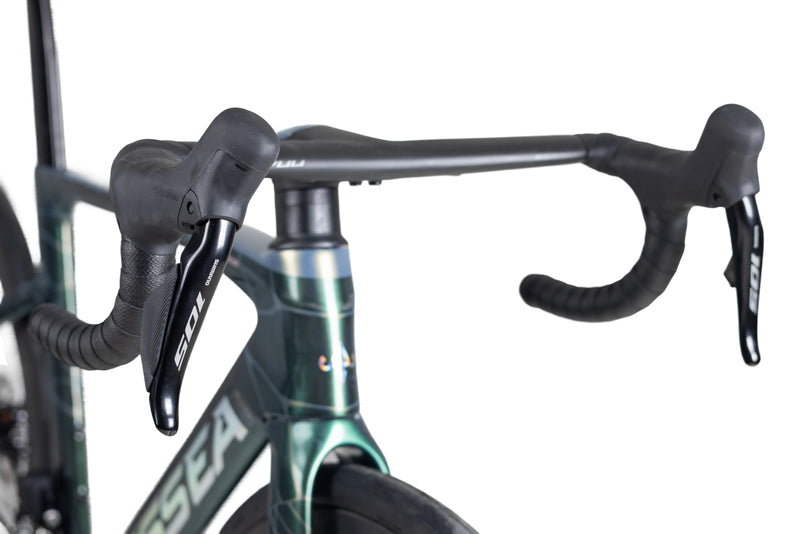

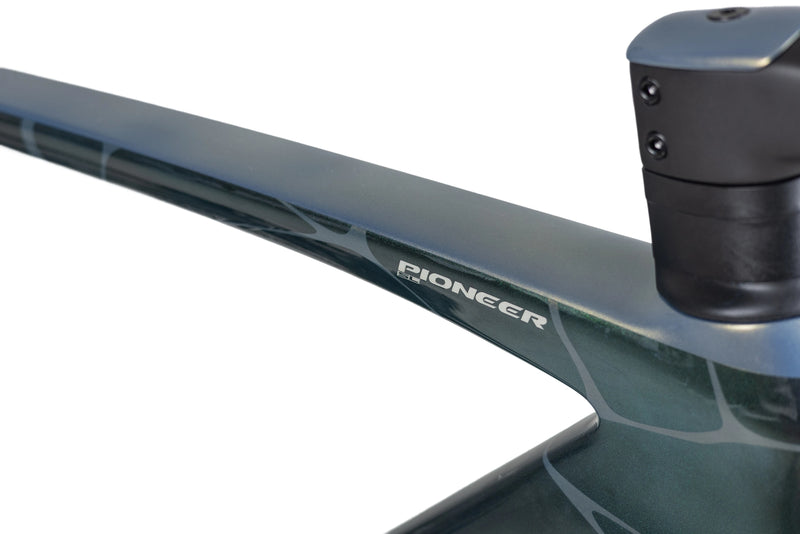

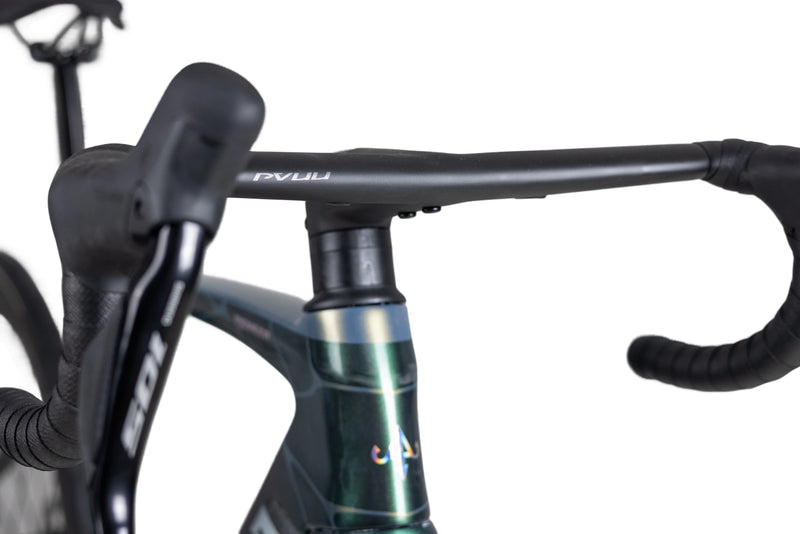

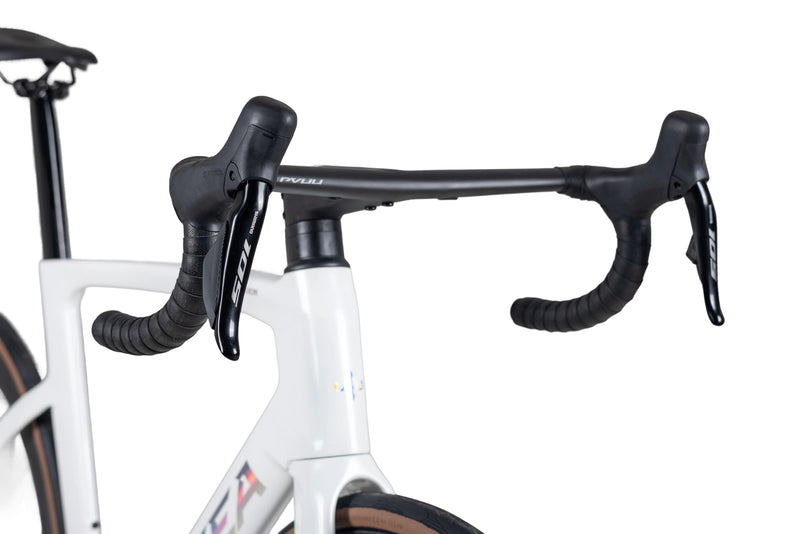

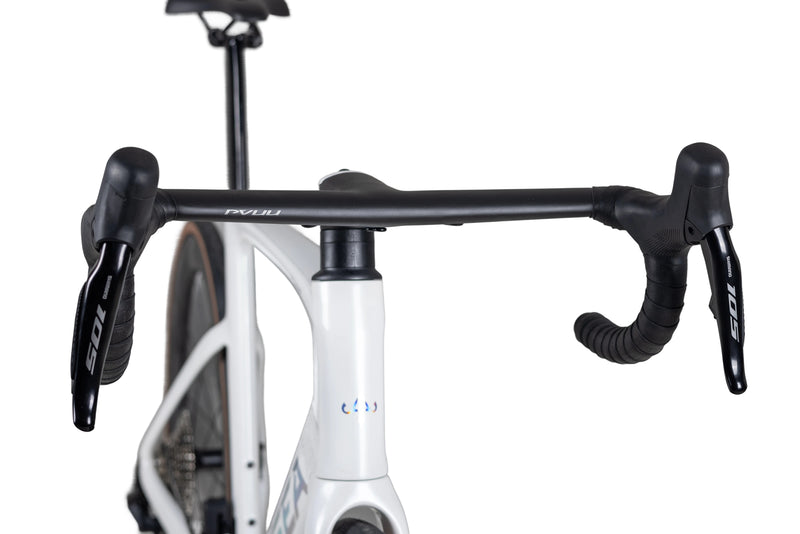

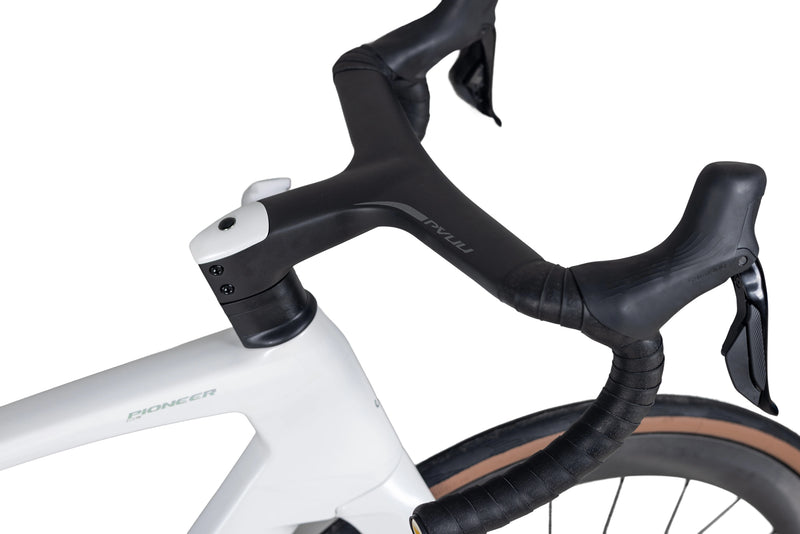

- Handlebars: Pvuu Stella1 Carbon Integrated Handlebar
- Seat Post: Bross Zenith aero carbon Seatpost, Di2-compatible
- Pedal: Excluding
- Weight: 8.9 kg in the M size
Size Chart:
- XS:156-168cm
- S:165-175cm
- M:172-180cm
- L:178-188cm
- XL:185-195cm
Geometry
SL Handlebar Geometry
Warranty.
From the date of purchase, the warranty period for each part is as follows:
Frameset: 2-year warranty under the non-human-caused damage or accident
Front and rear derailleurs: 6-month warranty under the non-human-caused damage or accident
Other Components: Wheels, saddle, shifters, cassette, crankset, hubs, handlebar, seatpost, brakes, suspension, bottom bracket - 6-month free warranty under the non-human-caused damage or accident
The wearable parts not listed above, such as inner tubes and tires, chains, cables, brake pads, brake hose and cables, shifter hose, and cables, etc. do not provide a free warranty.
During the warranty period, if the following circumstances cause damage, the Bross does not provide a warranty, and BROSS dealers can provide paid maintenance services.
Wrongly installed or misused by the provisions of this manual; (such as carrying persons, etc. exceeding the provisions)
Not properly maintained by this manual;
Exceeding the scope of the bicycle; (for example, using a road bike for mountain off-road)
Natural disasters and other irresistible situations;
There is a problem with the parts that a non-BROSS dealer has repaired:
After modification or change of the original factory configuration, and problems with the requirements of other companies:
Other parts damage and failure caused by the failure to replace the wearable parts in time.
